Código
Code
|
Tensão mínima
Minimun
Voltage
(V~) @ 1000 RPM *
|
Resistência interna
DC Resistance
@+25°C (Ohms ± 10%)
|
Indutância típica
Inductance (mH)
|
Rosca
Thread
|
Comprimento
Lenght (mm)
|
Material
Material
|
|

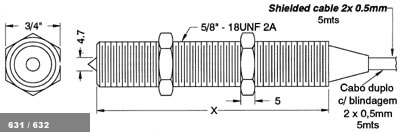

010-631
|
0,35
|
1150
|
430
|
5/8” 18 UNF 2A
|
82,0
|
INOX AISI 304
|
|
010-632
|
0,35
|
1150
|
430
|
5/8” 18 UNF 2A
|
140,0
|
INOX AISI 304
|
|
010-063
|
3,0
|
55
|
20
|
5/8” 18 UNF 2A
|
78,0
|
INOX AISI 304
|
|

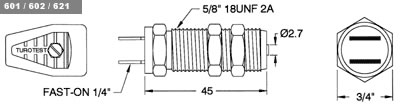

010-601 010-602
|
4,5
|
530
|
200
|
5/8” 18 UNF 2A
|
45,0
|
NYLON
|
|
010-621
|
7,5
|
530
|
200
|
5/8” 18 UNF 2A
|
45,0
|
NYLON
|
|
010-642
|
7,5
|
530
|
200
|
5/8” 18 UNF 2A
|
60,0
|
INOX AISI 304
|
|
010-067
|
7,5
|
530
|
200
|
5/8” 18 UNF 2A
|
78,0
|
INOX AISI 304
|
|

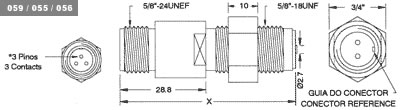

010-059
|
7,5
|
530
|
200
|
5/8” 18 UNF 2A
|
58,8
|
INOX AISI 304
|
|
010-641
|
7,5
|
530
|
200
|
5/8” 18 UNF 2A
|
45,0
|
INOX AISI 304
|
|

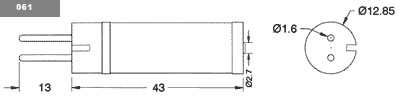

010-061
|
11,0
|
1150
|
430
|
5/8” 18 UNF 2A
|
43,0
|
NYLON
|
|
010-066
|
11,0
|
1150
|
430
|
5/8” 18 UNF 2A
|
45,0
|
INOX AISI 304
|
|
010-055
|
11,0
|
1150
|
430
|
5/8” 18 UNF 2A
|
58,8
|
INOX AISI 304
|
|
010-056
|
11,0
|
1150
|
430
|
5/8” 18 UNF 2A
|
83,0
|
INOX AISI 304
|
|

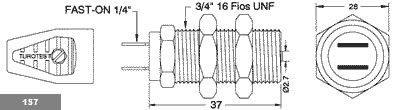

010-157
|
7,5
|
530
|
200
|
3/4” 16 UNF 2A
|
37,0
|
INOX AISI 304
|
|

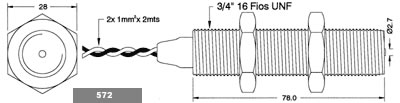

010-572
|
7,5
|
530
|
200
|
3/4” 16 UNF 2A
|
78,0
|
INOX AISI 304
|
|
010-643
|
11,0
|
1150
|
200
|
M16
|
87,0
|
INOX AISI 304
|

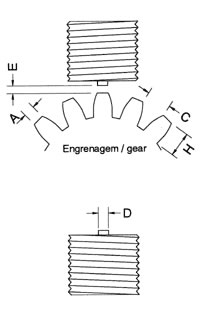

* Os valores de tensão acima, foram
medidos sem carga, @ 1000RPM com roda dentada de 60 dentes, Ø156mm, sendo / Voltage
measured with 60 teeth gear, Ø160mm @ 1000RPM being;
A= 2,54mm
H= 5,4mm
E= 0,5mm
Espessura / Tickness= 30mm
|
